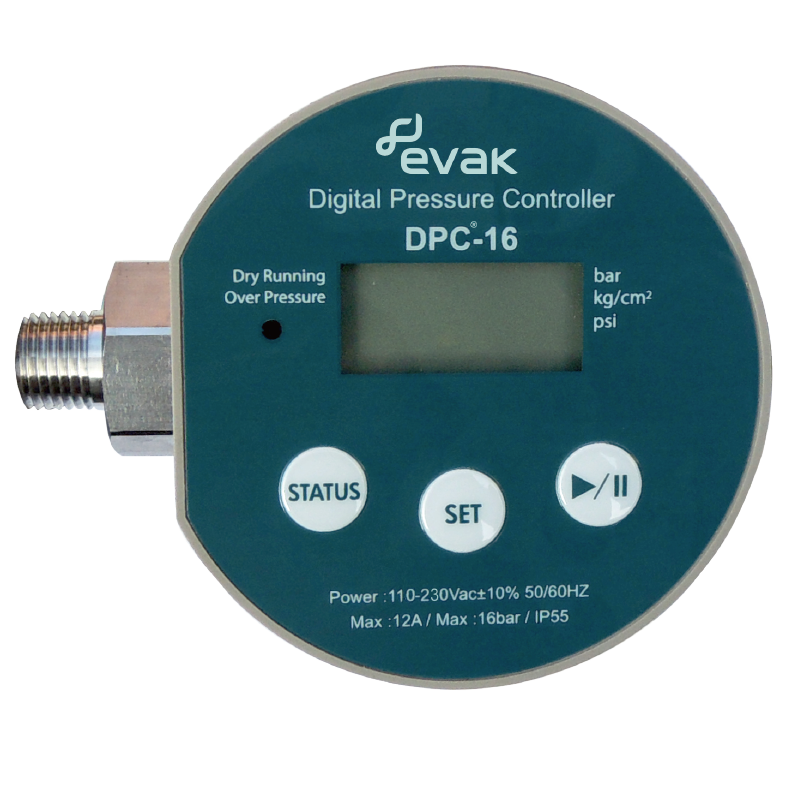

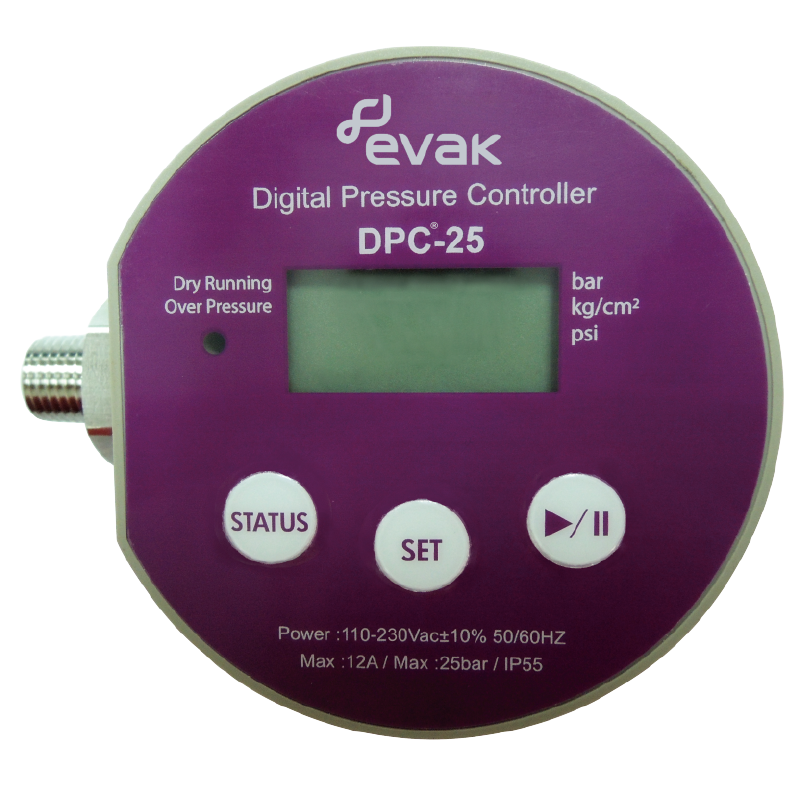

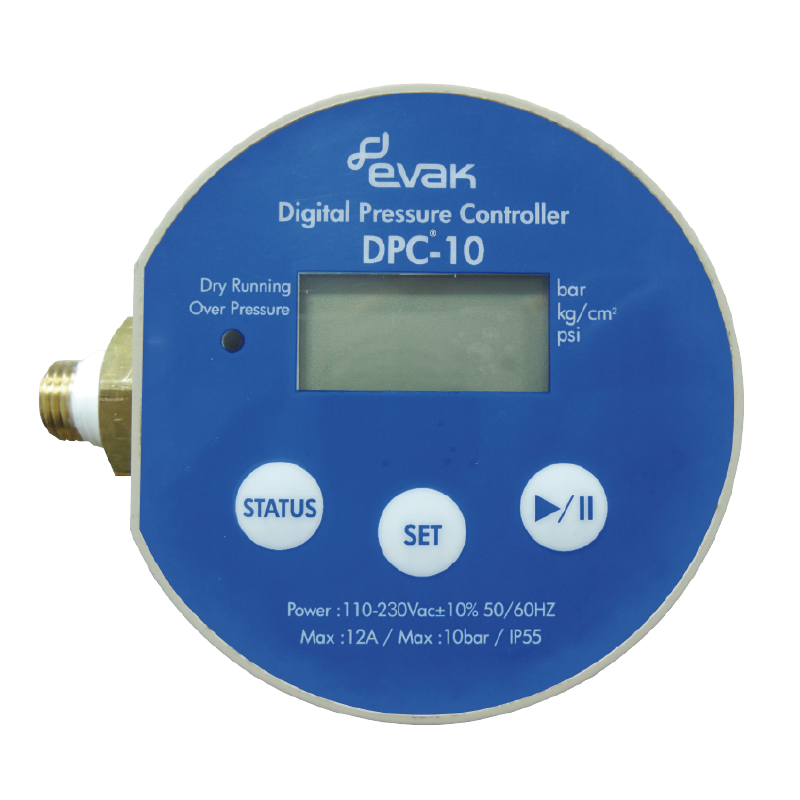

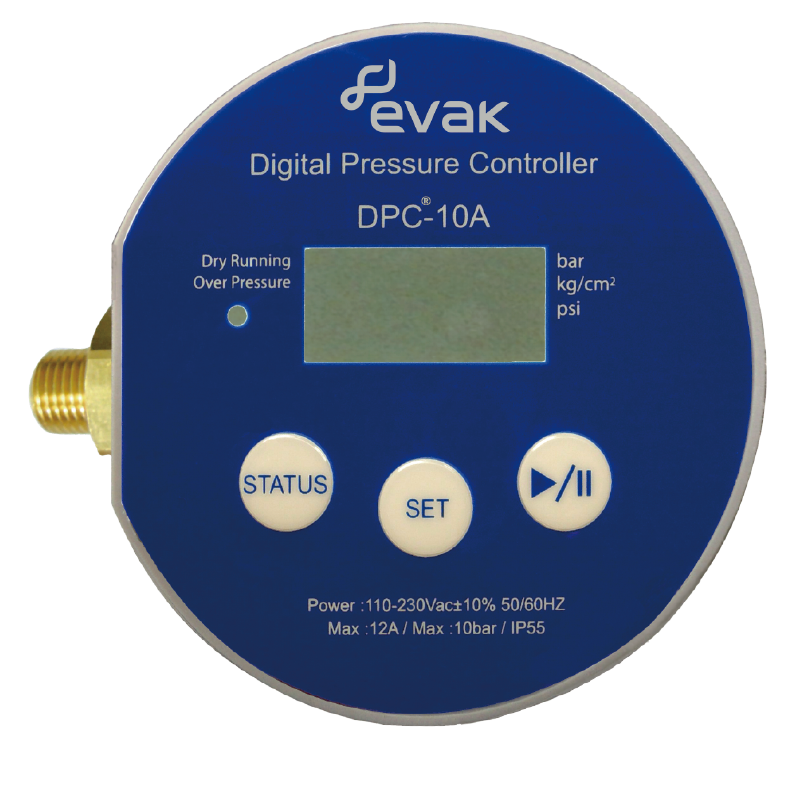

• Digital pressure control switch


    • • All time status display and LCD backlit for anytime view

    • • Clearly indicating 3-color LED light for reporting Status

    • •Protection limiting maximum starts per hour, protecting the pump from high frequent cycling per hour

    • •Protection adjustable restart delay 0~90 minutes, controlling the pump cycle rate

    • •Delayed Shutdown function - Prevention of overloading of maximum start

    • •Auto-restart in event of water shortage and resupply pressure when water source is available

    • •Resource-protection: Auto-shutdown in the event the maximum run time is exceeded: great for protecting against burst water pipe

    • •Fast response to accuracy and setting

    • •Anti-vibration, anti-jamming ability

    • •Easy to connect the wires and instal

    • •Reset IC installed – permanent memory of setting – will not lose setting even loss of power

    • •Able to work with three phase pumps with a contactor with required voltage to Digital Pressure Controller

    • •Lock screen function to prevent non-user modifying parameter settings

    • • Domestic

    • • Civil

    • • Agricultural

    • • Industrial
